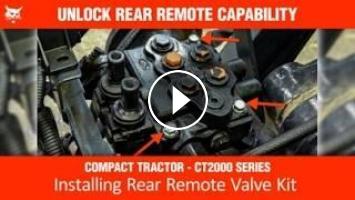

Installing the Bobcat Rear Remote Valve Kit I Bobcat CT2000 Series Tractor I How To

To add rear hydraulic functionality to your Bobcat CT2000 Series tractor, follow along as a Bobcat equipment specialist installs a rear remote valve kit. He walks you through four installation scenarios: installing the rear remote kit circuitry on its own, installing it with a 3rd auxiliary (or diverter) valve installed, installing it with the backhoe valve installed, and installing it with both the 3rd auxiliary (or diverter) valve and backhoe valve installed. Throughout the installation tutorial, you’ll learn how to mount the valve, and route the hydraulic hose and tube. The tutorial concludes with a final assembly of the controls and couplers.

Always obey warnings and instructions in the Operation & Maintenance manual when operating Bobcat machines or performing maintenance work.

*VIDEO CHAPTERS*
00:00 - Intro: Installing the Rear Remote Valve Kit on CT200 Tractors
00:36 - Park on a Level Surface & Lower Lift Arm, Bucket or Attachment
00:46 - Stop & Prepare the Machine
01:08 - Ensure Tractor is Safely Lifted & Various Components Removed
01:23 - Install the Rear Remote Valve Bracket
01:33 - Install Rear Remote Valve on Bracket
01:45 - Install Fittings
01:56 - Install 90-degree Barb Hose Fitting in Transmission Cover Port
02:12 - Install Short Hose Between Rear Remote Valve and 90-degree Barb Hose Fitting
02:29 - Installing the Rear Remote Valve Circuitry
02:34 - Remove Banjo Bolts, Tube Line and O Rings
02:46 - Install New Tube and O Rings in Transmission Cover Port
03:03 - Install Additional Tube Line & O Rings from Rear Remote Valve to Hydraulic Control Valve
03:19 - Connection Functionality Breakdown
03:41 - Installing the Rear Remote Valve Circuitry With 3rd Auxiliary (or Diverter) Valve Installed
03:47 - Remove Yellow Fitting & Sealing Washer from Transmission Cover
03:56 - Reinstall Transmission Cover Fitting & Washer in Rear Remote Valve
04:05 - Reroute Yellow Hose to Rear Remote Valve Fitting
04:14 - Install Tube & O Rings from Rear Remote to Transmission Cover
04:25 - Connection Functionality Breakdown
05:13 - Installing the Rear Remote Valve Circuitry with Backhoe Valve Installed
05:20 - Disconnect Red Hose from Hydraulic Control Valve
05:30 - Reroute & Install Hose on Rear Remote Valve
05:38 - Install Tube Line to Rear Remote Valve & Hydraulic Control Valve
05:52 - Connection Functionality Breakdown
06:47 - Installing the Rear Remote Kit Circuitry with 3rd Auxiliary (or Diverter) Valve & Backhoe Valve Installed
06:56 - Disconnect 102-inch or 2600mm Hose at Diverter Valve
07:01 - Disconnect Long Hose from Backhoe Valve
07:09 - Install Female Coupler on Red Hose
07:13 - Install Red Hose on Rear Remote Valve
07:20 - Install Fitting Washer in Rear Remote Valve Port
07:27 - Connect Yellow Hose to Fitting Washer
07:34 - Route Yellow Hose to Diverter Valve
07:42 - Route Red Hose to Rear and Connect to Female Coupler
07:49 - Connection Functionality Breakdown
08:38 - Secure Hoses
08:56 - Completing the Installation
08:59 - Install Couples & Coupler Plugs to Mounting Bracket
09:13 - Remove Bolts from Toplink Bracket
09:21 - Install Left & Right Mounting Brackets & Couplers
09:33 - Install Tube Lines & Connect to Couplers
10:04 - Remove Lever Guide
10:18 - Install Left & Right Lever on Remote Valve
10:30 - Reinstall Lever Guide
10:39 - Install Lever Grips
10:49 - Install Safety Signs
10:56 - Visit Bobcat.com or Dealer to Learn More
