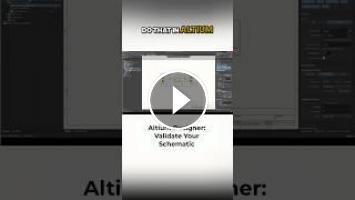

Validate Your Schematic in Altium Before PCB Layout

13 Просмотры

Спасибо! Поделитесь с друзьями!

Вам не понравилось видео. Спасибо за то что поделились своим мнением!

Издатель Aug 3, 2026

Altium Develop connects your schematic, sourcing, and manufacturing in one place, so once your design validates clean it's ready to move forward: https://www.altium.com/develop?utm_source=youtube&utm_medium=video&utm_campaign=altium-academy-shorts&utm_content=validate-your-schematic-in-altium-before-pcb-layout

Before you move from schematic to PCB layout, run an electrical rules check to make sure your design is clean. In this short from the Altium Designer Quick-Start Tutorial with Phil Salmony of Phil's Lab, Phil shows the fast way to do it in Altium Designer: right-click your project and click Validate. If nothing shows up, you're good to go; if it does, open Panels → Messages to read the compiler output. Once you see "Compile successful, no errors found," you're ready to move over to PCB design.

It's a small habit that saves big headaches — catching unconnected nets, duplicate designators, and other schematic issues before they follow you into layout. Watch the full quick-start tutorial for the complete schematic-to-PCB workflow in Altium Designer.
