Locking the Patio: How Interlocking Pavers Create a Permeable Surface

The Permeable Grid: Interlocking Paver Installation for Sustainable Hardscaping

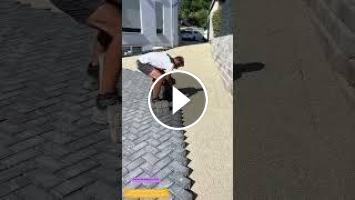

In the bright sunlight of a residential courtyard, where a modern building with large windows and balconies provides the backdrop, two landscape contractors perform the meticulous laying process that transforms a prepared gravel base into a finished, walkable surface. The site is divided into two distinct zones: a completed area of compacted permeable gravel that serves as a drainage reservoir, and the active work zone where gray concrete pavers are being laid in a herringbone pattern that interlocks the units into a unified structural mat.

The pavers, manufactured from high-strength concrete with a compressive strength of 50–60 MPa, feature a unique profile with protruding lugs on two or four sides that engage corresponding recesses in adjacent units. This interlocking geometry, visible as the workers lift each paver from the stack and place it against its neighbors, creates a structural connection that distributes point loads across multiple units and prevents individual pavers from shifting, tilting, or migrating under traffic. The workers, working on their knees on the prepared bedding layer of fine sand or 2–6 millimeter aggregate, place each unit with deliberate precision, tapping it into position with gloved hands and checking alignment with the established pattern lines.

• Base Preparation: The subgrade is excavated to a depth of 200–300 millimeters and filled with open-graded aggregate in two layers—a coarse base of 20–40 millimeter stone for structural support and a 50-millimeter bedding layer of 2–6 millimeter aggregate that provides both leveling and drainage.

• Interlock Geometry: The paver's lugs and recesses create a 3–5 millimeter joint gap that is filled with fine aggregate during final compaction, locking the units together while maintaining the void spaces that allow water infiltration at rates of 100–1,000 liters per hour per square meter.

• Pattern Efficiency: The herringbone pattern, with units laid at 45 or 90 degrees to the principal axis, provides the greatest interlock resistance to multidirectional traffic loads, making it the preferred pattern for driveways and commercial applications.

• Compaction Protocol: After laying, the surface is vibrated with a plate compactor that settles the pavers into the bedding layer, forces aggregate into the joints, and creates a flat plane with surface tolerances of ±3 millimeters over a 3-meter straightedge.

• Environmental Benefit: Permeable pavers reduce stormwater runoff by 70–90% compared to impervious surfaces, recharging groundwater, reducing downstream flooding, and filtering pollutants through the aggregate base before water reaches the aquifer.

What this installation reveals is the convergence of engineering and aesthetics in modern landscape construction: the pavers, individually small and simple, combine into a surface that is simultaneously decorative, structural, and environmentally functional. The workers placing each unit by hand are not merely laying bricks; they are assembling a filtration system, a load-distribution mat, and a visual statement that will define the outdoor space for decades. The interlock, invisible once the joints are filled, is the secret that allows the surface to function as a single entity while remaining repairable unit by unit. In the sustainable landscape, the permeable paver is the compromise between human need and hydrological responsibility—the hard surface that remembers to let the rain through.
